UL Design No. H531 · Two-Hour Fire-Rated Floor/Ceiling Assembly
A simpler path to a
two-hour fire-rated
floor/ceiling assembly

A dedicated UL-listed assembly built to save time and money without compromising performance: a single layer of MAXTERRA® MgO Structural Subfloor, a single layer of ULIX or Type C, 20-gauge cold-formed steel framing, and no wet trades.
It's Not the Cost of the Board.
It's the Cost of the Build.
The cheapest panel rarely makes the cheapest assembly. The real cost of a two-hour fire-rated floor/ceiling assembly lives in places the panel price doesn't show: labor, schedule, additional materials, jobsite coordination, and structural weight. UL Design No. H531 was developed to take cost and time out of the build, not just the board.
Performance
Without Compromise
"The schedule savings are substantial. By eliminating concrete decking, and the shoring and curing that come with it, the impact on the build is significant."
Stanley K. Adwell,
President & Co-Founder, Intellisteel
View All Project Spotlights →

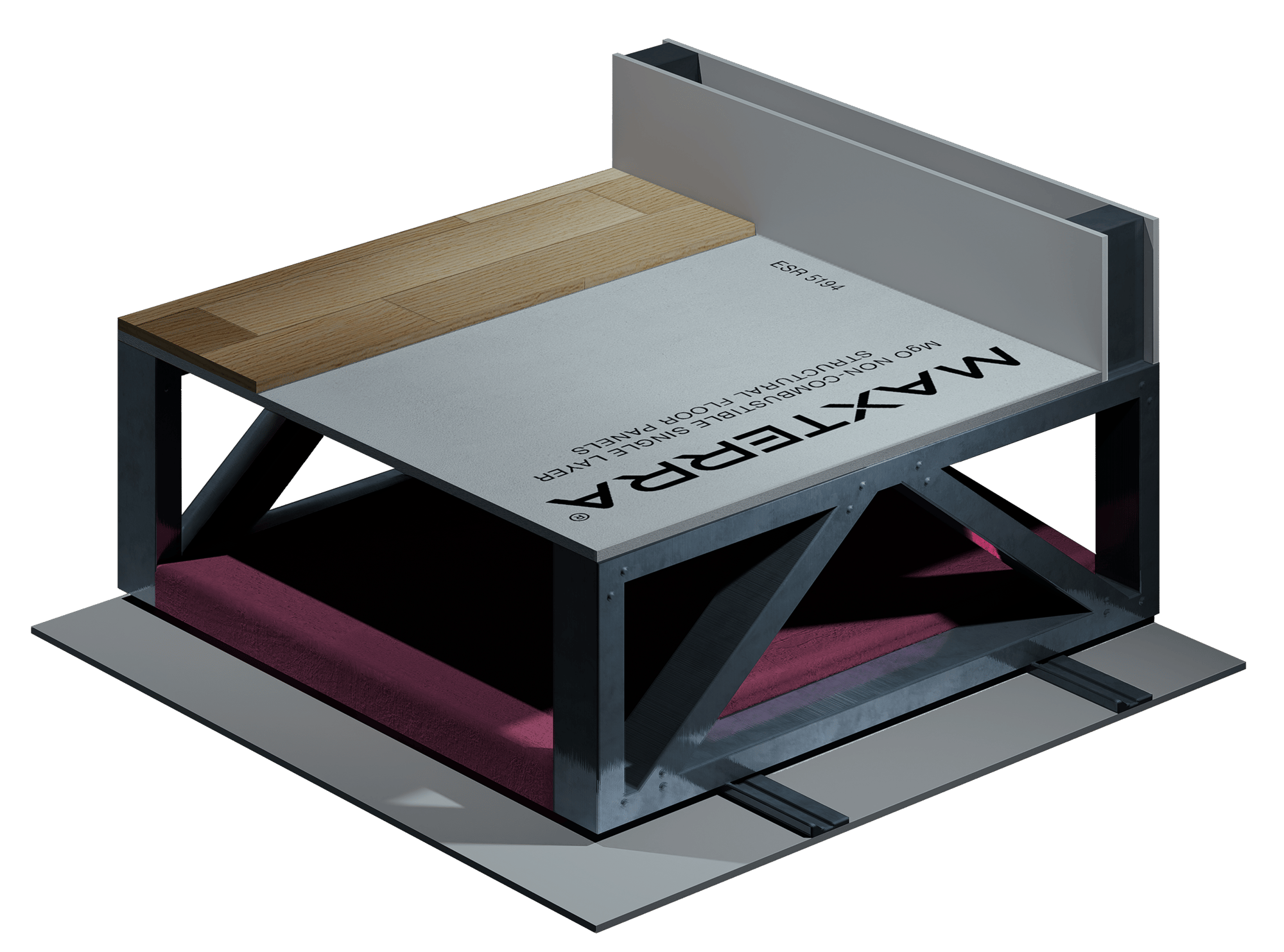

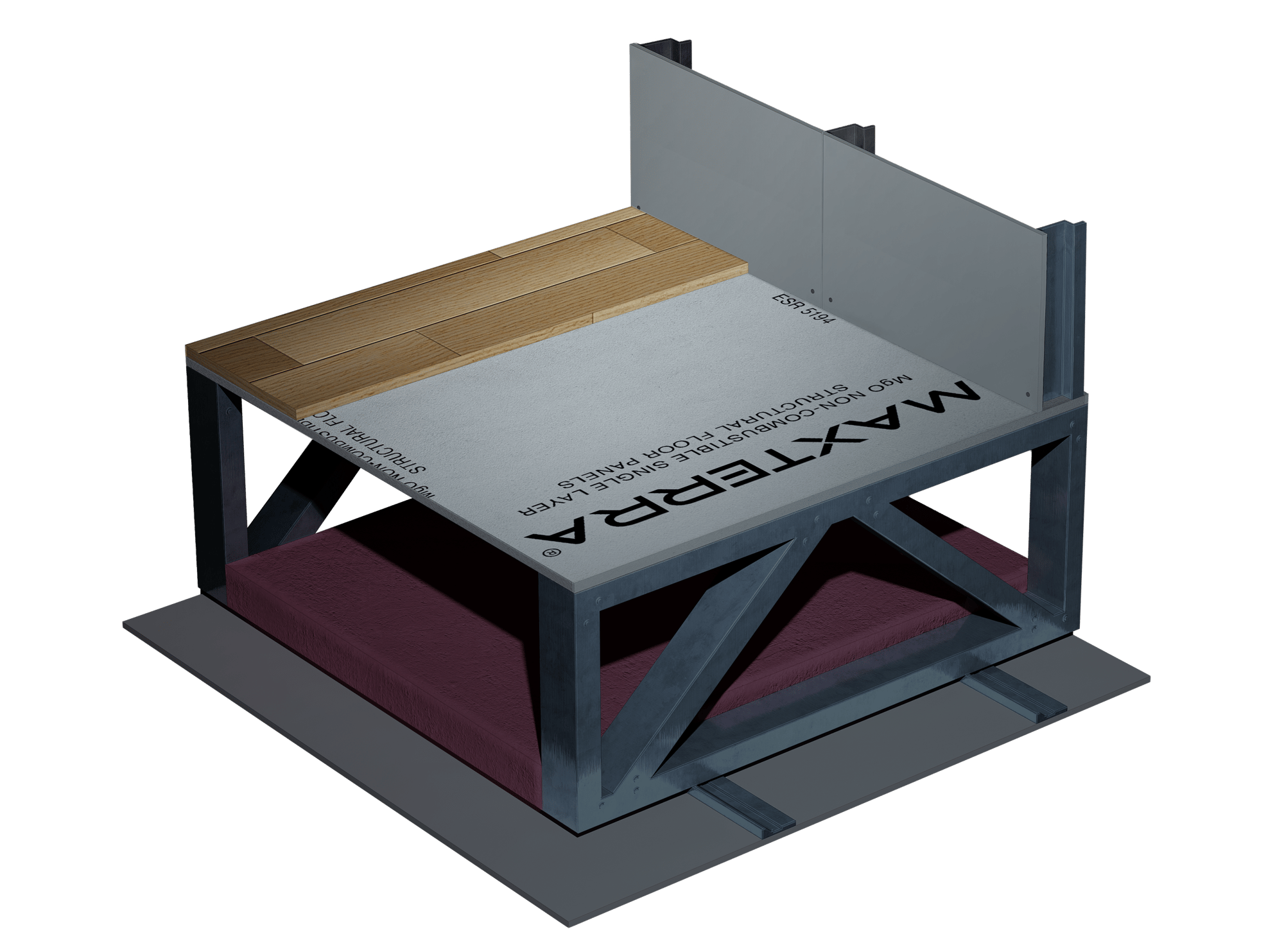

Five components.Two-hour rating.
No wet trades.
"With these materials, you're going from roughly 50 pounds per square foot down to 13 pounds per square foot for a floor and ceiling system. When you multiply that across three or four floors, you're significantly minimizing project costs by eliminating the added weight, complexity, and labor associated with heavier assemblies."
Tim Liescheidt,
Managing Member, AdvanT Steel
What a two-hour rating
costs elsewhere
Most fire-rated floor/ceiling assemblies in market require additional layers, heavier
steel, brand-specific gypsum, or wet-applied toppings to reach a two-hour rating.
UL H531 simplifies the recipe. And the budget.
Click any competitor column for an assembly breakdown ↓
| Assembly Feature |
MAXTERRA®H531 | UL DesignH515 | UL DesignG575 | UL DesignH509 | UL DesignH514 |
|---|---|---|---|---|---|
| Ceiling Gypsum | 1 layer, ULIX or Type C | 1–2 layers, Type ULIX | 2 layers, Type C | 2 layers, Type C | 1 layer, Type C (National Gypsum only) |
| Additional Floor Topping | None | Varies by assembly | None | Varies* | None |
| Sound Mat in Assembly | None | Specified in some | None | None | None |
| Truss Steel Gauge | 20 ga | 18 ga | 16 ga | 16 ga | 16 ga |
| Insulation | Any qualifying batt | Any qualifying batt | Any qualifying batt | Any qualifying batt | R-13, 0.92 density (restricted) |
| Blocking Required | None (tongue & groove) | None | Required* | Specified in some | None |
| Cost Premium per sq ft vs. H531 | BASELINE $7.16 PER SQ FT |
+$4.13 up to / sq ft | +$7.43 / sq ft | +$6.93 up to / sq ft | +$2.15 / sq ft |
Includes assembly materials and primary installation labor. Subfloor panel material not included.
Data sourced from UL assembly listings H531, H515, G575, H509, H514.
*Underlayment note: UL Design No. H509 does not require a floor topping. The listed subfloor panel's product certification (IAPMO UES ER-0808) does not permit its use without a separate underlayment, so a panel underlayment or poured topping is required.
*Blocking note:
UL Design No. G575 was tested with no panel-edge blocking. The listed subfloor panel uses a shiplap edge profile. Where structural panels do not have approved tongue-and-groove joints, Table 2304.8(3) of the 2024 International Building Code requires panel edges to be supported with blocking unless an approved exception applies. Final edge-support requirements should be verified by the project design professional and authority having jurisdiction
Cost comparison methodology and disclaimer:
Estimates are based on reviewed UL assembly configurations, RSMeans data, and third-party supplier or installer quotes available at the time of analysis. Includes assembly materials and primary installation labor. Subfloor panel material not included. References to other UL designs are for assembly-level comparison only and do not evaluate, criticize, or imply that any third-party product is defective, unsuitable, noncompliant, inferior, or endorsed by NEXGEN. Costs are informational only and are not bids, guarantees, or project-specific estimates. Actual costs and requirements may vary; users should verify pricing, code compliance, assembly requirements, and suitability with their design professional, contractor, supplier, and authority having jurisdiction.

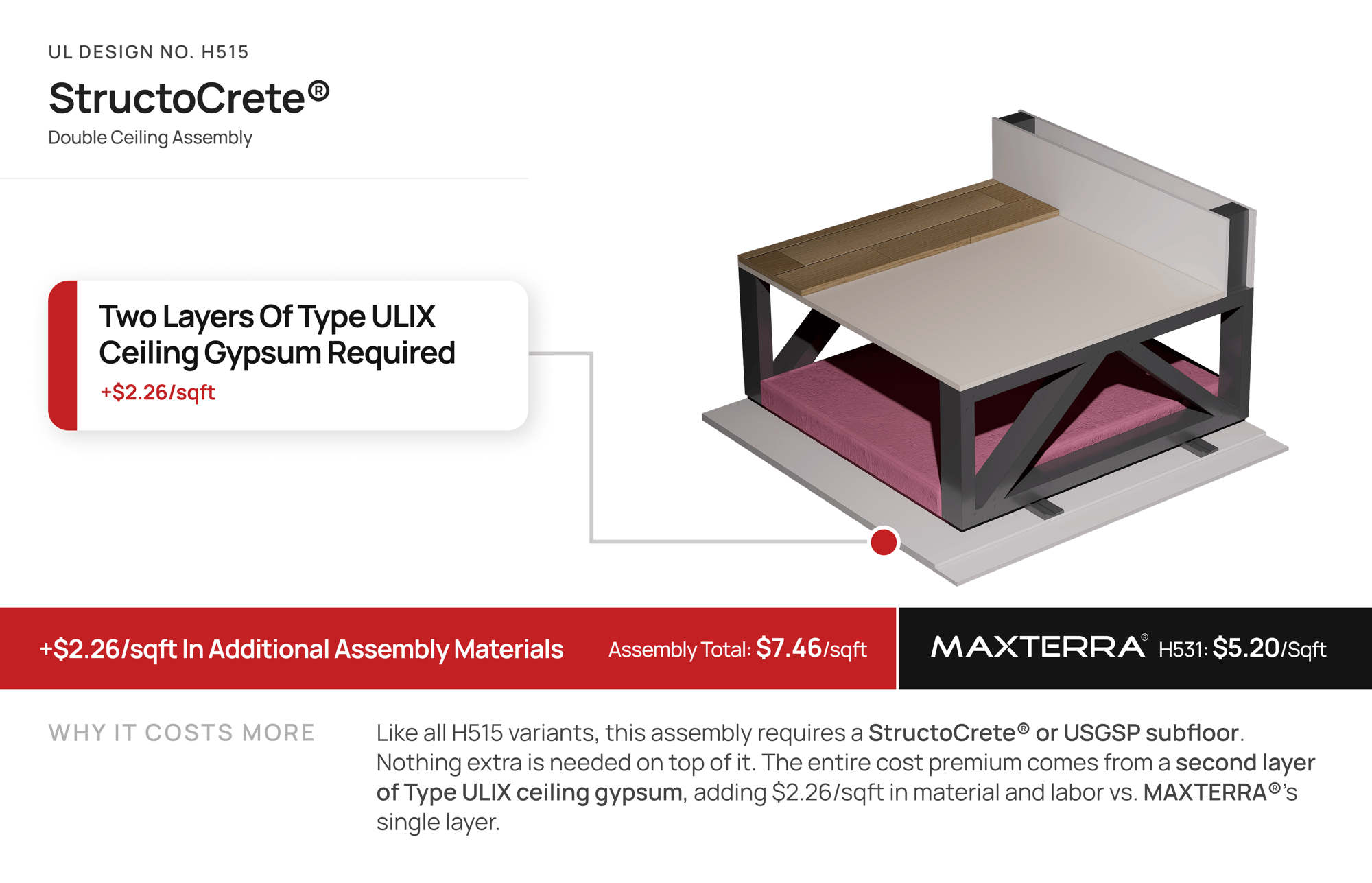

UL Design No. H515
Double Ceiling Assembly

Includes assembly materials and primary installation labor. Subfloor panel material not included.
Why It Costs More
Like all H515 variants, this assembly requires a listed Structural Cement-Fiber Units subfloor. Nothing extra is needed on top of it. Most of the cost premium comes from a second layer of Type ULIX ceiling gypsum, adding $2.32/sqft in material and labor vs. MAXTERRA®'s single layer. H515 was compared on 18-gauge framing to match its listing (the other assemblies use 20-gauge), which adds $0.75/sqft.
Cost methodology and disclaimer
Cost comparison methodology and disclaimer: Estimates are based on reviewed UL assembly configurations, RSMeans data, and third-party supplier or installer quotes available at the time of analysis. Includes assembly materials and primary installation labor. Subfloor panel material not included. References to other UL designs are for assembly-level comparison only and do not evaluate, criticize, or imply that any third-party product is defective, unsuitable, noncompliant, inferior, or endorsed by NEXGEN. Costs are informational only and are not bids, guarantees, or project-specific estimates. Actual costs and requirements may vary; users should verify pricing, code compliance, assembly requirements, and suitability with their design professional, contractor, supplier, and authority having jurisdiction.

Includes assembly materials and primary installation labor. Subfloor panel material not included.

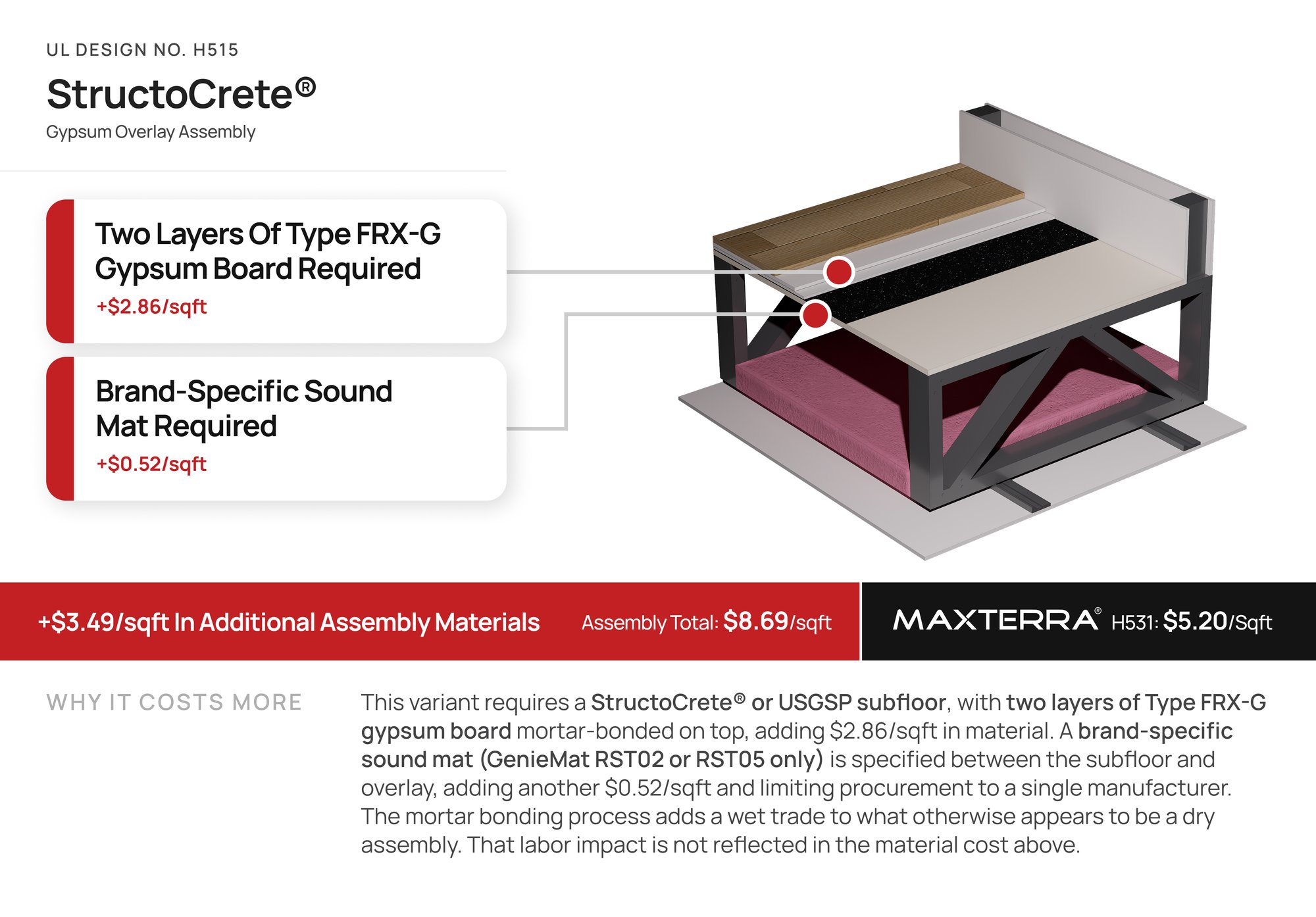

Why It Costs More
This variant requires a listed Structural Cement-Fiber Units subfloor, with two layers of Type FRX-G gypsum board mortar-bonded on top, adding $2.86/sqft in material. A brand-specific sound mat (GenieMat RST02 or RST05 only) is specified between the subfloor and overlay, adding another $0.52/sqft and limiting procurement to a single manufacturer. The mortar bonding process adds a wet trade to what otherwise appears to be a dry assembly. That labor impact is not reflected in the material cost above. H515 was compared on 18-gauge framing to match its listing (the other assemblies use 20-gauge), which adds $0.75/sqft.
Cost methodology and disclaimer
Cost comparison methodology and disclaimer: Estimates are based on reviewed UL assembly configurations, RSMeans data, and third-party supplier or installer quotes available at the time of analysis. Includes assembly materials and primary installation labor. Subfloor panel material not included. References to other UL designs are for assembly-level comparison only and do not evaluate, criticize, or imply that any third-party product is defective, unsuitable, noncompliant, inferior, or endorsed by NEXGEN. Costs are informational only and are not bids, guarantees, or project-specific estimates. Actual costs and requirements may vary; users should verify pricing, code compliance, assembly requirements, and suitability with their design professional, contractor, supplier, and authority having jurisdiction.

Includes assembly materials and primary installation labor. Subfloor panel material not included.

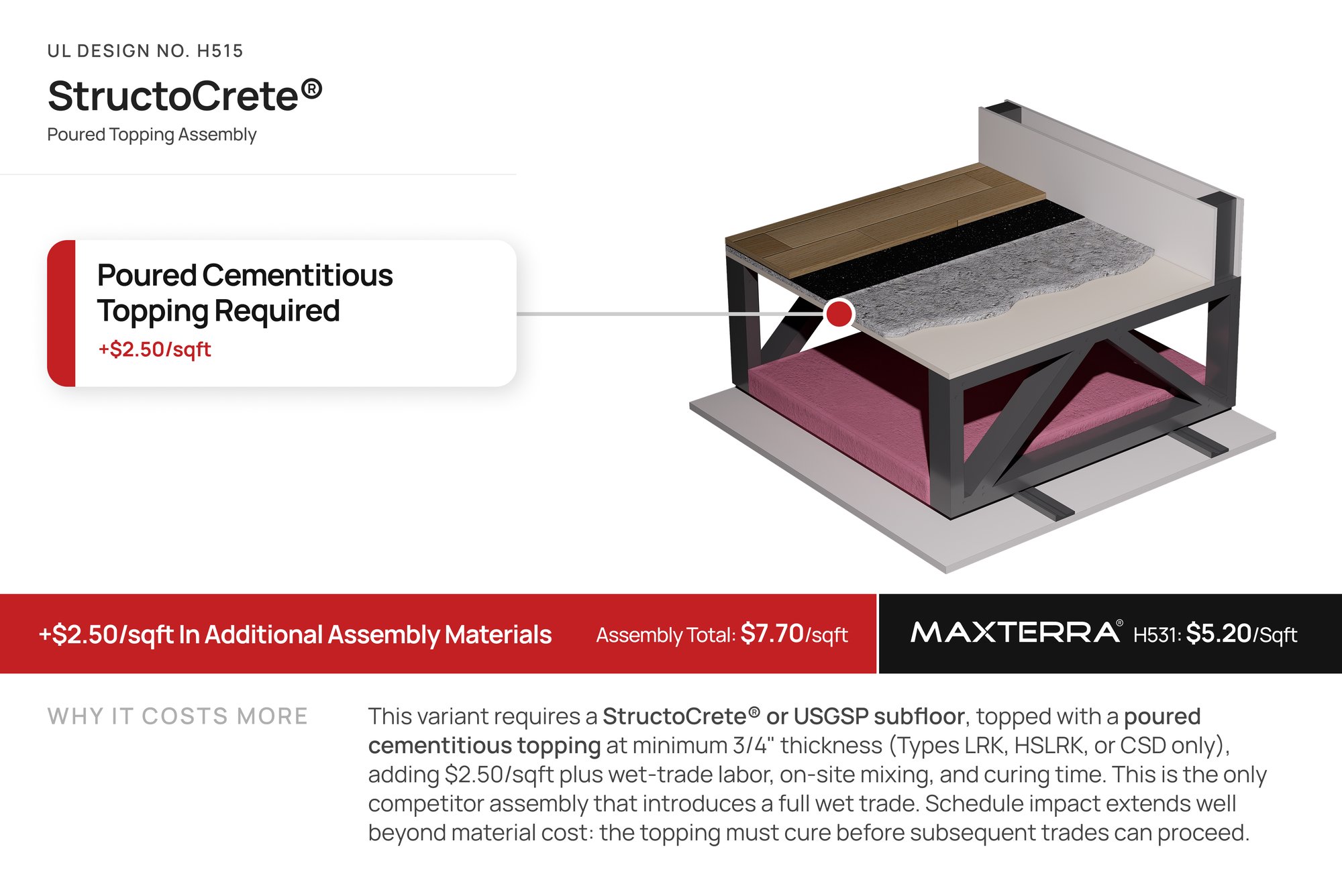

Why It Costs More
This variant requires a listed Structural Cement-Fiber Units subfloor, topped with a poured cementitious topping at minimum 3/4" thickness (Types LRK, HSLRK, or CSD only), adding $2.50/sqft plus wet-trade labor, on-site mixing, and curing time. This is the only competitor assembly that introduces a full wet trade. Schedule impact extends well beyond material cost: the topping must cure before subsequent trades can proceed. H515 was compared on 18-gauge framing to match its listing (the other assemblies use 20-gauge), which adds $0.75/sqft.
Cost methodology and disclaimer
Cost comparison methodology and disclaimer: Estimates are based on reviewed UL assembly configurations, RSMeans data, and third-party supplier or installer quotes available at the time of analysis. Includes assembly materials and primary installation labor. Subfloor panel material not included. References to other UL designs are for assembly-level comparison only and do not evaluate, criticize, or imply that any third-party product is defective, unsuitable, noncompliant, inferior, or endorsed by NEXGEN. Costs are informational only and are not bids, guarantees, or project-specific estimates. Actual costs and requirements may vary; users should verify pricing, code compliance, assembly requirements, and suitability with their design professional, contractor, supplier, and authority having jurisdiction.
UL Design No. G575
Heavier Steel, Tighter Spacing, Blocking Required

Includes assembly materials and primary installation labor. Subfloor panel material not included.
Why It Costs More
G575 requires minimum 16-gauge steel framing at 16" O.C. spacing, meaning 50% more trusses than MAXTERRA® H531's 24" O.C. layout. The heavier gauge adds $1.75/sqft; the tighter spacing adds another $2.75/sqft. The listed subfloor panel uses a square-edge profile that lacks tongue-and-groove interlock, so steel blocking must be installed at every panel joint, with additional material and labor adding $0.61/sqft. A double layer of Type C ceiling gypsum adds $2.32/sqft to close the assembly. All told, G575 is the most expensive competitor assembly at more than double MAXTERRA®'s non-board cost.
Cost methodology and disclaimer
Cost comparison methodology and disclaimer: Estimates are based on reviewed UL assembly configurations, RSMeans data, and third-party supplier or installer quotes available at the time of analysis. Includes assembly materials and primary installation labor. Subfloor panel material not included. References to other UL designs are for assembly-level comparison only and do not evaluate, criticize, or imply that any third-party product is defective, unsuitable, noncompliant, inferior, or endorsed by NEXGEN. Costs are informational only and are not bids, guarantees, or project-specific estimates. Actual costs and requirements may vary; users should verify pricing, code compliance, assembly requirements, and suitability with their design professional, contractor, supplier, and authority having jurisdiction.
Technical notes for this assembly
Steel blocking at panel joints. UL Design No. G575 was tested without panel-edge blocking. The listed subfloor panel uses a shiplap edge profile. Where structural panels do not have approved tongue-and-groove joints, Table 2304.8(3) of the 2024 International Building Code requires panel edges to be supported with blocking unless an approved exception applies. Final edge-support requirements should be verified by the project design professional and authority having jurisdiction.
Truss spacing. UL Design No. G575 was tested with 24" support spacing. However, the manufacturer's installation instructions for the listed subfloor panel only support spacing up to 16" O.C.
UL Design No. H509
Heavier Steel, Double Ceiling

Includes assembly materials and primary installation labor. Subfloor panel material not included.
Why It Costs More
The UL listing does not require a topping, but the listed subfloor panel's certification requires a separate underlayment, either an underlayment panel or a poured topping. A panel overlay adds $2.86/sqft. This assembly also requires minimum 16-gauge steel framing, adding $1.75/sqft over MAXTERRA®'s 20-gauge specification. A double layer of Type C ceiling gypsum adds $2.32/sqft to close the assembly.
Cost methodology and disclaimer
Cost comparison methodology and disclaimer: Estimates are based on reviewed UL assembly configurations, RSMeans data, and third-party supplier or installer quotes available at the time of analysis. Includes assembly materials and primary installation labor. Subfloor panel material not included. References to other UL designs are for assembly-level comparison only and do not evaluate, criticize, or imply that any third-party product is defective, unsuitable, noncompliant, inferior, or endorsed by NEXGEN. Costs are informational only and are not bids, guarantees, or project-specific estimates. Actual costs and requirements may vary; users should verify pricing, code compliance, assembly requirements, and suitability with their design professional, contractor, supplier, and authority having jurisdiction.

Includes assembly materials and primary installation labor. Subfloor panel material not included.
Why It Costs More
The UL listing does not require a topping, but the listed subfloor panel's certification requires a separate underlayment, either an underlayment panel or a poured topping. A poured cementitious topping adds $2.50/sqft. This assembly also requires minimum 16-gauge steel framing, adding $1.75/sqft over MAXTERRA®'s 20-gauge specification. A double layer of Type C ceiling gypsum adds $2.32/sqft to close the assembly.
Cost methodology and disclaimer
Cost comparison methodology and disclaimer: Estimates are based on reviewed UL assembly configurations, RSMeans data, and third-party supplier or installer quotes available at the time of analysis. Includes assembly materials and primary installation labor. Subfloor panel material not included. References to other UL designs are for assembly-level comparison only and do not evaluate, criticize, or imply that any third-party product is defective, unsuitable, noncompliant, inferior, or endorsed by NEXGEN. Costs are informational only and are not bids, guarantees, or project-specific estimates. Actual costs and requirements may vary; users should verify pricing, code compliance, assembly requirements, and suitability with their design professional, contractor, supplier, and authority having jurisdiction.

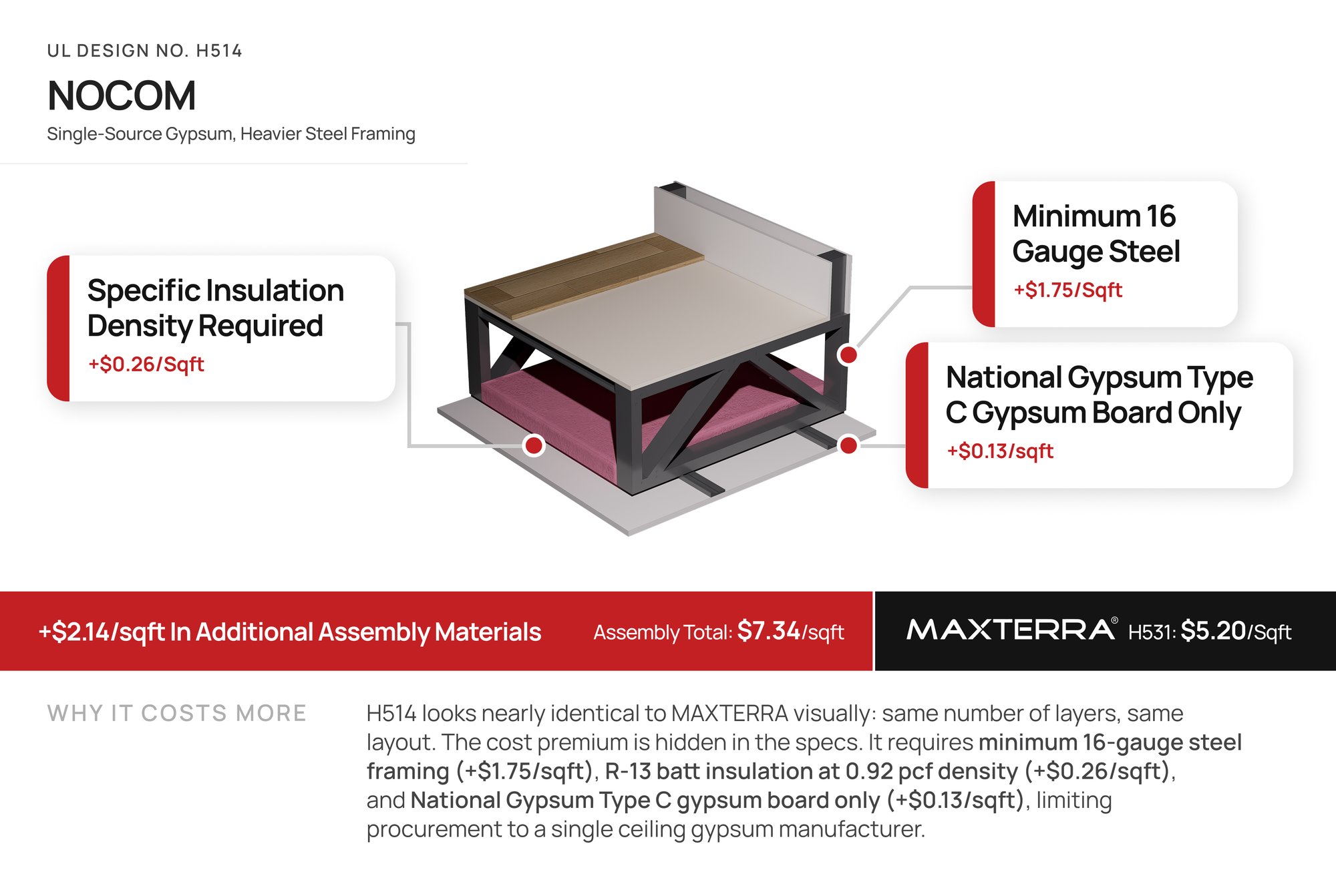

UL Design No. H514
Single-Source Gypsum, Heavier Steel Framing

Includes assembly materials and primary installation labor. Subfloor panel material not included.
Why It Costs More
H514 looks nearly identical to MAXTERRA® visually: same number of layers, same layout. The cost premium is hidden in the specs. It requires minimum 16-gauge steel framing (+$1.75/sqft), R-13 batt insulation at 0.92 pcf density (+$0.26/sqft), and National Gypsum Type C gypsum board only (+$0.13/sqft), limiting procurement to a single ceiling gypsum manufacturer. Adhesive applied at panel joints adds another $0.01/sqft.
Cost methodology and disclaimer
Cost comparison methodology and disclaimer: Estimates are based on reviewed UL assembly configurations, RSMeans data, and third-party supplier or installer quotes available at the time of analysis. Includes assembly materials and primary installation labor. Subfloor panel material not included. References to other UL designs are for assembly-level comparison only and do not evaluate, criticize, or imply that any third-party product is defective, unsuitable, noncompliant, inferior, or endorsed by NEXGEN. Costs are informational only and are not bids, guarantees, or project-specific estimates. Actual costs and requirements may vary; users should verify pricing, code compliance, assembly requirements, and suitability with their design professional, contractor, supplier, and authority having jurisdiction.
One UL listing.
Three different conversations.
Built for multifamily, hospitality, assisted living, student
housing, data centers, and commercial construction.
A clean line in the spec.
Architects need tested, code-compliant assemblies that simplify design in a market squeezed by labor shortages and rising trade costs. Write UL Design No. H531 directly into the documents, and you get a single solution that addresses fire, sound, and moisture requirements without substitution logic or equivalency arguments.
Finish faster. Get paid sooner.
With 77% of GCs reporting difficulty filling skilled trade jobs, labor savings matter more than ever. H531 cuts wet trades, reduces subcontractor coordination, and uses a lighter 20-gauge steel path, resulting in faster schedules and a lower risk of overruns.
Less carry. Higher returns.
Higher interest rates and insurance premiums have made carrying costs a bigger line item than ever. H531 delivers faster installs, fewer trades, and lower rework risk, all of which improve project economics directly by helping you lease, sell, or open sooner.
"Why do we use 3/4" tongue-and-groove MAXTERRA® Structural MgO Panels with Cold-Formed Steel? Simple, it's instant, carries a 2-hour fire rating, and lets us move fast without sacrificing performance. This is how we keep multiple trades moving at once."
Jason Schaller,
Founder, Vitruvian Housing
The assembly is only as strong as the panel it’s built on.

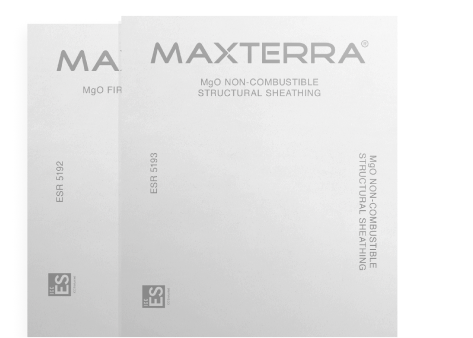

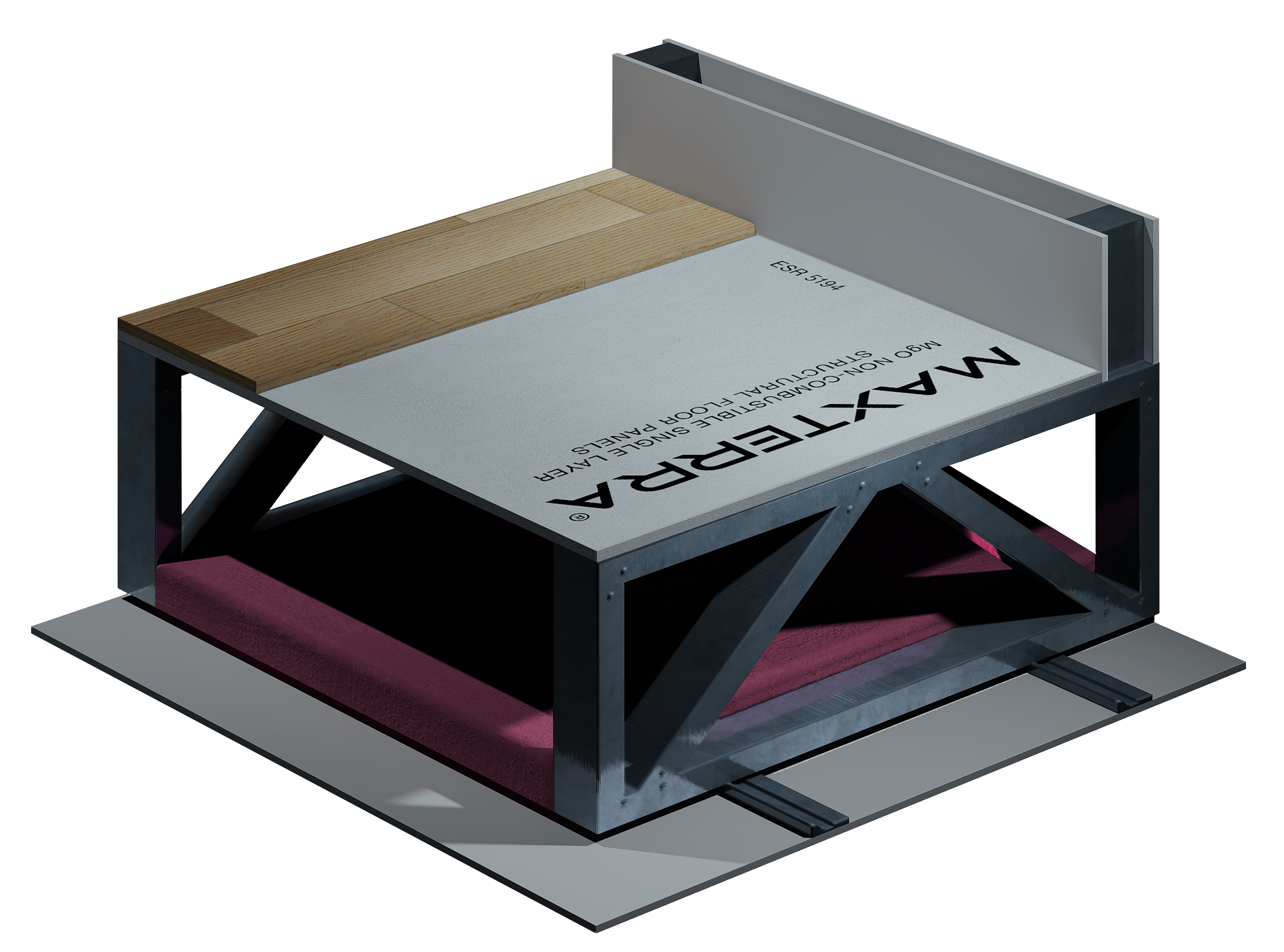

At the center of UL Design No. H531 is MAXTERRA® MgO Structural Subfloor, a single-layer, non-combustible structural panel certified under UL File R41539.

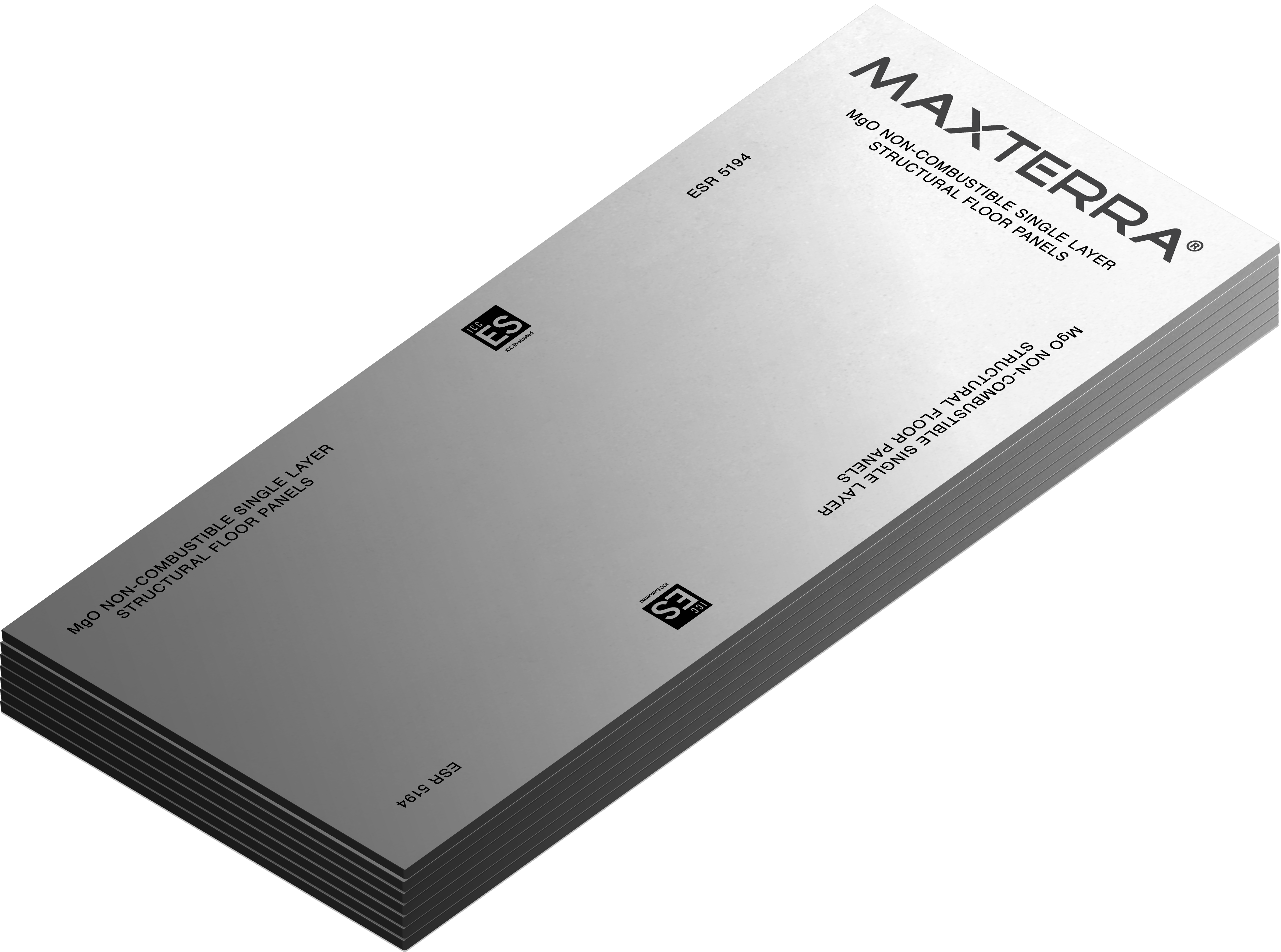

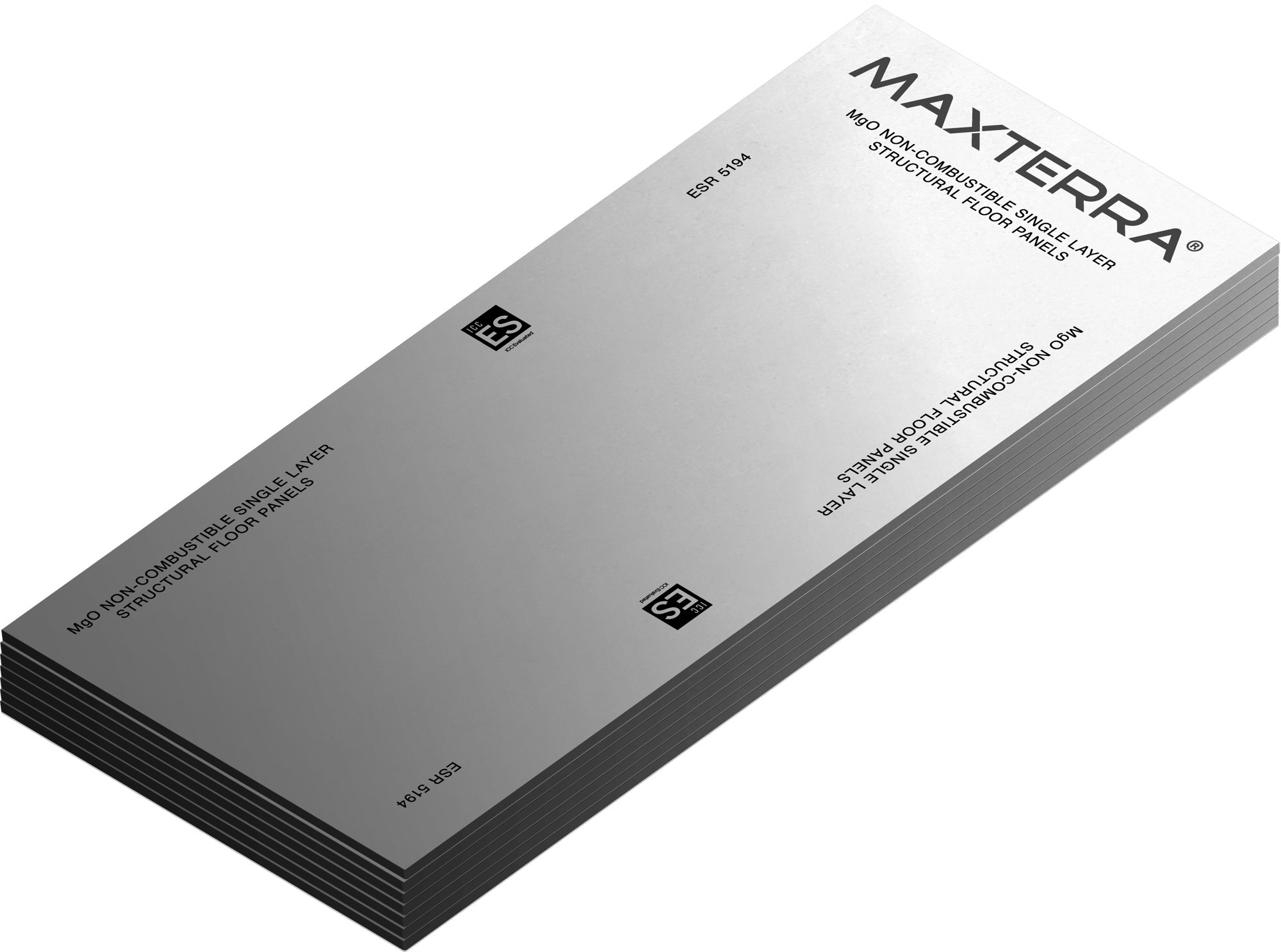

MAXTERRA® Structural Floor Panels
UL Certified · File R41539.


H531 isn't a one-off.
It's the next entry on the list.
MAXTERRA® holds the most comprehensive third-party certification portfolio of any MgO panel in the North American market. Each listing represents a real test in a real assembly, not a marketing claim.
Two-hour fire-rated floor/ceiling assembly
The new dedicated UL listing built around a single layer of MAXTERRA® MgO Structural Subfloor, a single layer ULIX or Type C, on 20-gauge cold-formed steel framing. No poured topping, no sound mat, no additional blocking required for the listed rating.

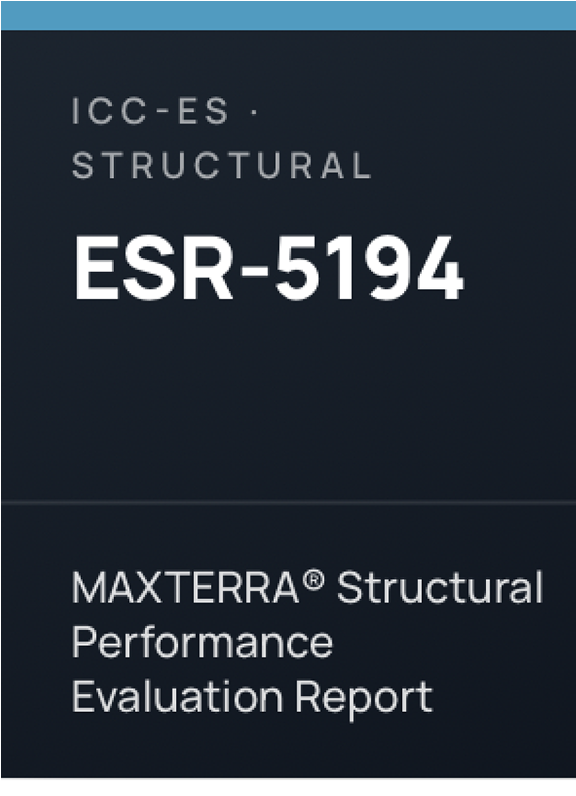

Structural performance
Code-recognized structural evaluation, including approval for cold-formed steel floor assemblies.

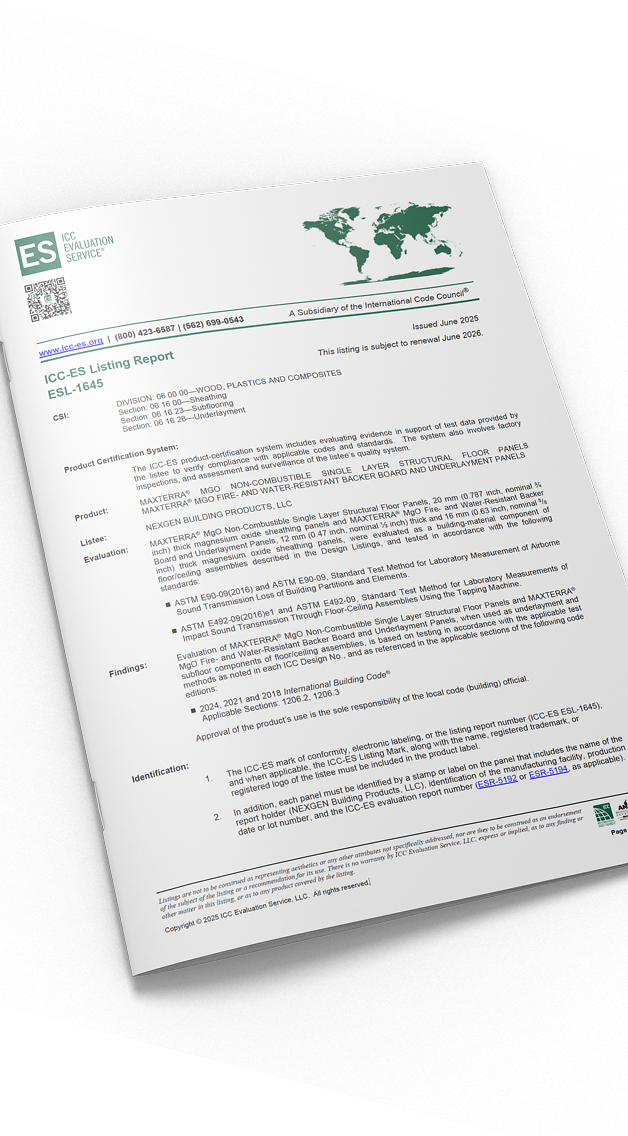

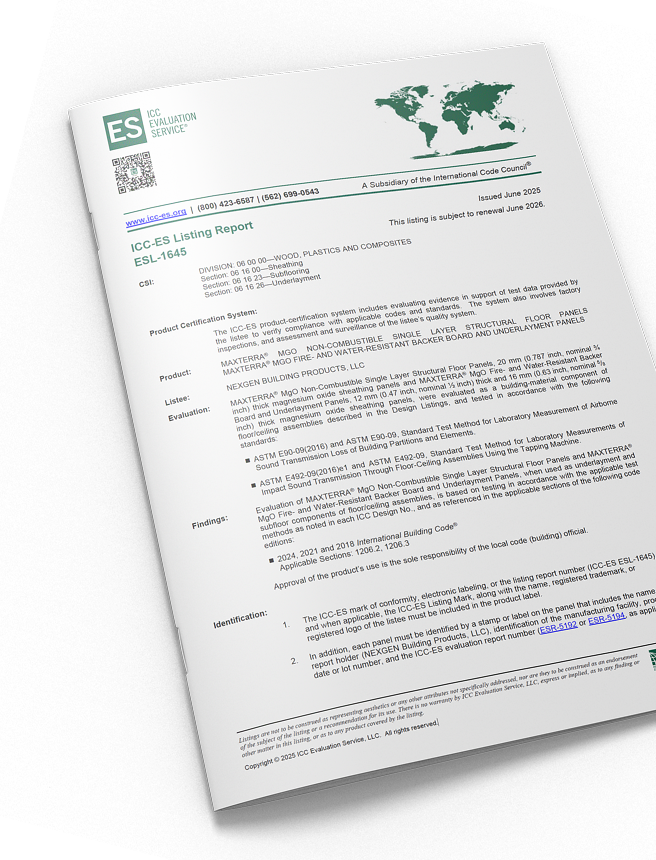

Acoustical performance
First MgO panel certified for both wood and CFS framing acoustical performance.

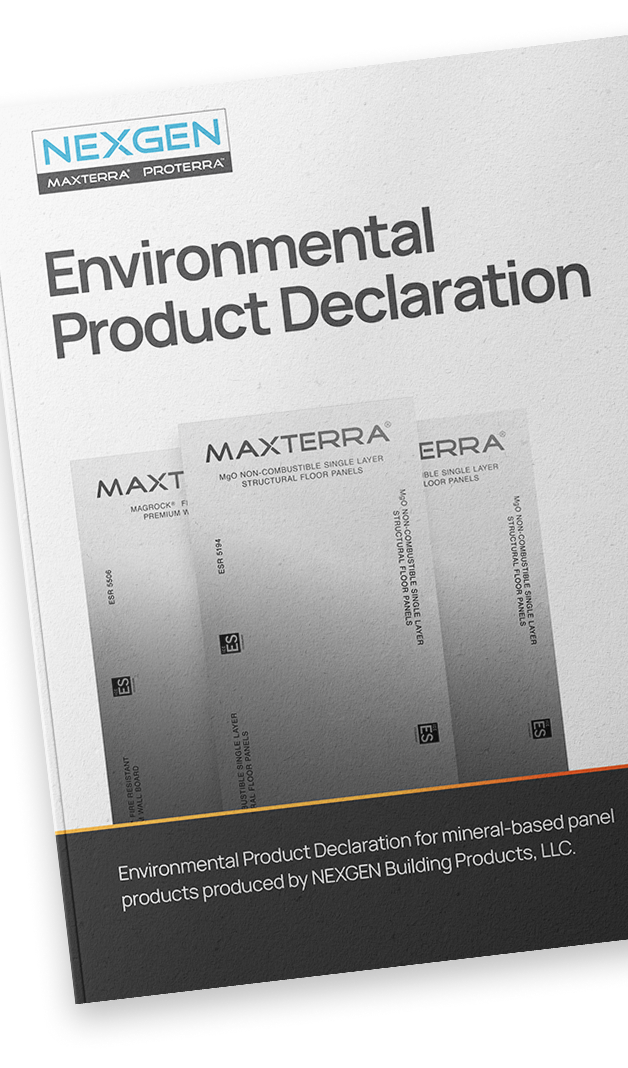

Verified EPD
The only MgO panel with a verified Environmental Product Declaration for the North American market.
Frequently Asked
Questions
Is MAXTERRA® non-combustible, or just "fire-rated"?
MAXTERRA® structural floor panels are advanced magnesium oxide (MgO) cement panels engineered for high-performance floor and floor/ceiling assemblies. As part of the most highly certified MgO panel system in the North American market, MAXTERRA® uses magnesium oxysulfate chemistry and is supported by extensive third-party testing, including ICC-ES evaluation and UL fire-rated assemblies. The result is a structural panel solution designed to deliver fire resistance, moisture resistance, and installation efficiency without relying on traditional Portland cement-based systems.
Can I specify H531 directly, or does MAXTERRA need to be substituted into another UL listing?
H531 is a dedicated UL-listed assembly built around MAXTERRA® MgO Non-Combustible Single Layer Structural Floor Panels. Architects and engineers can write UL Design No. H531 directly into specification documents without substitution arguments or equivalency logic.
What if my project needs sound attenuation between floors?
UL H531 does not require a sound mat to achieve its two-hour fire-resistance rating, but a sound mat may be added to enhance the acoustic performance of the assembly. The MAXTERRA® panel itself contributes meaningfully to the assembly's acoustic performance, and our ICC-ES ESL-1645 acoustical certification documents the tested STC and IIC ratings for MAXTERRA in both wood and cold-formed steel framing configurations.
If your project has additional acoustic requirements beyond what the assembly delivers on its own, sound mats and other underlayments remain fully compatible with H531. Reach out to our engineering team for project-specific acoustic guidance.
Does H531 require a specific brand of cold-formed steel framing?
The H531 assembly was tested in partnership with AdvanT Steel and is also compatible with FrameCad CFS truss systems. The listing covers cold-formed steel framing meeting the specified gauge, depth, and spacing. Refer to the official UL listing on UL Product iQ for full framing requirements and component alternates.
What building codes and construction types recognize UL H531?
UL Design No. H531 is a UL-listed fire-resistance design that meets fire-rating requirements under the International Building Code (IBC) and locally adopted code variants where UL fire-resistance designs are accepted. The assembly uses non-combustible primary components, including the MAXTERRA® MgO structural subfloor, cold-formed steel framing, resilient channels, and Type ULIX or Type C gypsum ceiling board, with listed glass fiber batt insulation as part of the tested fire-resistance assembly. That combination makes it ideal for IBC Type I, II, III, and V construction wherever a two-hour fire-rated floor/ceiling assembly is required. Refer to the official UL listing on UL Product iQ for the full design specifications.
How do I specify, build a submittal, or estimate cost for H531?
You have three paths. Talk to a NEXGEN engineer for project-specific specification support. Build your own submittal package to generate custom documentation on demand.
Build Faster. Build Safer.
Build Smarter.
Three ways to put UL H531 to work on your project. Talk it through with our engineering team, build your own submittal package, or get a price.
